Main Menu

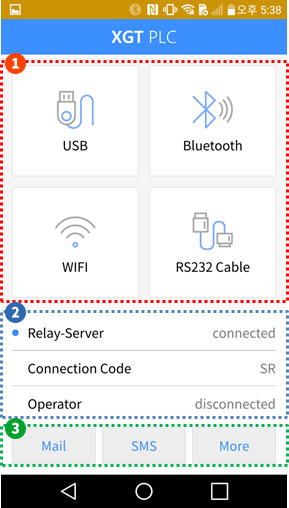

Android
(1) Connection type selection area
(2) Connection status area
(3) Connection code delivery method selection area

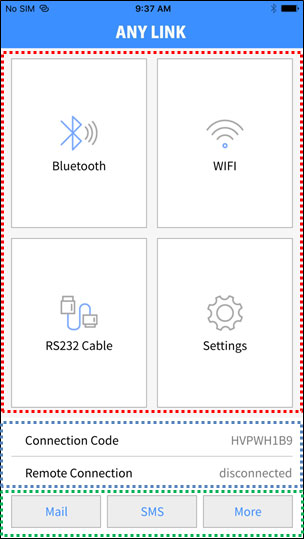

iOS

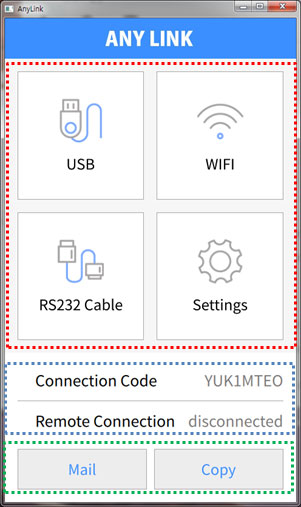

PC
Connection type selection area
1) USB: Use a USB to connect to PLC
2) Wi-Fi: Use Ethernet to connect to PLC.
3) RS232: Use RS232 cable to connect to PLC.
4) Bluetooth: Use Bluetooth to connect to PLC.
5) Settings: You can set up environment for AnyLink.
Connection status area
1) Relay server connected (or disconnected): Displays the connection status between AnyLink and the relay server.
2) Connection code: Displays the connection code for the user who uses a remote connection to connect to AnyLink.
3) Remote server connected (or disconnected): Displays the connection status between AnyLink and the user who uses a remote connection.
Connection code delivery method selection area
1) Mail: Send the connection code to the user who will use a remote connection via an electronic mail.
2) SMS: Send the connection code to the user who will use a remote connection via a test message.
3) Copy: Copy the connection code to the clipboard. It is displayed in the PC version only.
4) Other: Use other method than provided methods to deliver the connection code to the user who will connect to AnyLink.
